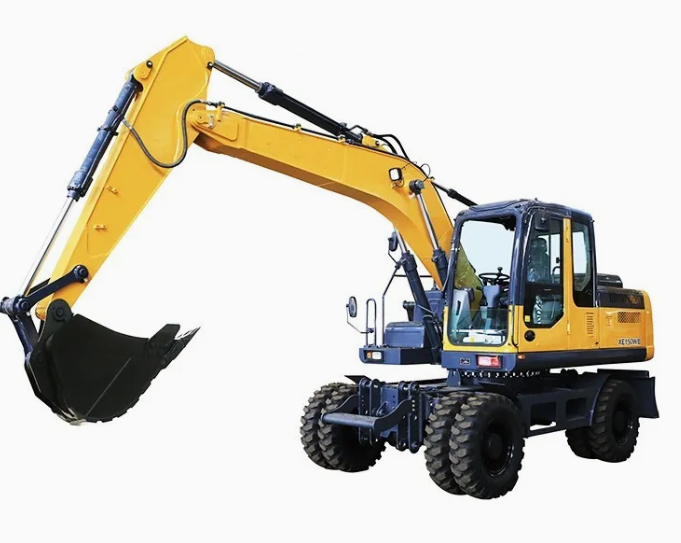

XE150WB wheeled hydraulic excavator is powerful, flexible and exquisite enough to cope with a variety of working conditions.
Product Description
XE150WB wheeled hydraulic excavator is powerful, flexible and exquisite enough to cope with a variety of working conditions. The appearance size of the machine complies with road regulations and transportation requirements. It plays an important role in the aspects of airport, port, oil field, urban construction, irrigation and water conservancy and rapid repair, and brings rich value returns for customers.
This machine has used a new generation of independent researched and developed controllers as well as a low-noise pump and especially considered the matching between the engine and the low-speed load to make full use of the engine power, improve the working efficiency and effectively reduce the fuel consumption. The reliability during heavy-load operations can be satisfied by virtue of its lightweight chassis with high rigidity and strengthened key parts.
Basic Information
| Model NO. | XE150WB | Type | Crawler Excavator |
| Transmission | Hydraulic Transmission | Bucket Capacity | 0.58cbm |
| Certification | CE | Condition | New |
| Transport Package | Nude Package | Specification | 14000kg |
| Trademark | China Top 1 Brand | Origin | Xuzhou, Jiangsu, China |
| HS Code | 87059091 | Production Capacity | 1000 Units/Month |
Packaging & Delivery
| Package Size | 25.00cm * 25.00cm * 25.00cm |
| Package Gross Weight | 5000kg |
Product Parameters
| Model | Unit | XE150WB |
| Engine model | / | QSB4.5 |
| Output power of engine | Kw/r/min | 104/2000 |
| Operating Weight | KG | 14000 |
| Max.torque/engine | N.m | 586 |
| Displacement | L | 4.5 |
| Fuel tank capacity | L | 250 |
| Rated flow of main pump | L/min | 2x160 |
| Pressure of main safety valve | Mpa | 31.4/34.3 |
| Hydraulic tank capacity | L | 135 |
| Slewing speed | r/min | 12 |
| Digging capacity of tcuket | KN | 95 |
| Digging capacity of tcuket rod | KN | 72 |
| Min.turning radius | mm | 6500 |
| Rated speed | KM/h | 11/33 |
| Gradient capability | % | 70 |
| A Total length | mm | 7778 |
| B Total width | mm | 2495 |
| C Total heigth | mm | 3305 |
| Counterweight ground clearance | mm | 1230 |
| Min.ground clearance | mm | 355 |
| Min.tail swing radius | mm | 2300 |
| Wheelbase | mm | 2800 |
| Track gauge | mm | 1920 |
| Total width of chassis | mm | 2495 |
| Distance between front axle and turning center | mm | 1700 |
| Hood height | mm | 2430 |
| The maximum digging depth of dozer | mm | 105 |
| Max. digging radius | mm | 7780 |
| Min. swing radius | mm | 7570 |
| Max. digging height | mm | 8190 |
| Max. dumping height | mm | 5855 |
| Max. digging depth | mm | 4630 |
| Maximum depth cut for 2240mm(8 ft) level bottom | mm | 4325 |
| Max. vertical wall digging depth | mm | 4150 |
Packaging and shipping
1. Containers are the cheapest and fastest
2. Bulk carriers are better for large construction equipment
3. Flat rack is better for large construction equipment and does not need to be disassembled
4.RoRo ships are fast and good for all kinds of machines
You can choose any transportation according to your needs
5. FOB, CRF and CIF are all acceptable.
We can ship the machine in bulk as a whole, or we can load it in a container and disassemble it on some parts of the machine, or we can ship it on a flat rack. We can choose the way according to your requirements.
Packaging details: Packaging will be as per customer requirements
Delivery time: 2 working days
Experienced international trade team provides the best full set of services
our service
1) Original parts and good working condition;
2) Low working hours and high work efficiency;
3) Strong work motivation and good stability;
4) Complete accessories and no oil leakage;
5) Competitive price and good skills;
6) Good after-sales service
We hope you can give us the opportunity to negotiate with you by email or phone, or come to Shanghai face to face, we are honored to contact you and serve you, and we promise to provide you with the best prices and services:
1) Book a hotel for you
2) Pick you up at the airport
3) Freely translate for you and guide you when you are free
4) 6 months to 1 year product and after-sales service warranty
1. How to guarantee the condition and lifetime of the machine ?
A: We choose good condtion and less hour used machines. We are available for third part certificate of all of the machines.
And they are all available for your inspection in its place.
2. How to have after sale service from us ?
A: We have old suppliers in China, used or new parts are available for us to get, with reasonable price and in short time.
3. How can customers make visit and checking in China ?
A: We arrange everything ready for your jouney in China, welcome your happy visit!~
